Deluxe Door Frame  |  Fire Rated Door Frame
MATERIAL Zincalume G300-AZ150./Galvanneal-JIS G3312-CGCH.
Zincanneal-G2 ZF 100./Galvanised-JIS G3302-SGCC.
Electro Galvanized Steel./Hot-Dip Galvanized Steel.
Others materials available upon request.

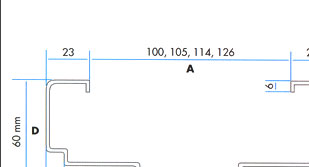

BACK OPENING Back opening of 100mm, 105mm, 114mm & 126mm.
JOINT FINISHING Frame corner are assembled using MIG welding on inner and outer side of mitre joint. All welded areas are treated with etching primer.
STRIKER PLATE 0.9mm thick stainless steel plate tighten with 2 nos. steel tapping screw for single leaf frame.
MORTAR BOX(lock pocket) Mortar box guard of 15mm deep is welded on lock-side style for single leaf frame.
HINGES 3 nos. of 100mm x 70mm x1.5mm zinc plated, loose pin slotted and spot welded into vertical slot opening of door frame.
SPREADER BAR 2 nos. spreader bars are welded to frame.
WIRE TIES 8 nos. of 4mm. Ø wire ties.
RUBBER BUFFER 2 nos. of rubber buffers fitted to frames for single leaf frame.

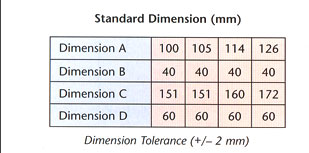

*Other dimensions upon request
